Display walk-in freezer

Display walk-in freezer
Display walk-in freezer
Display walk-in freezer

Product Introduction

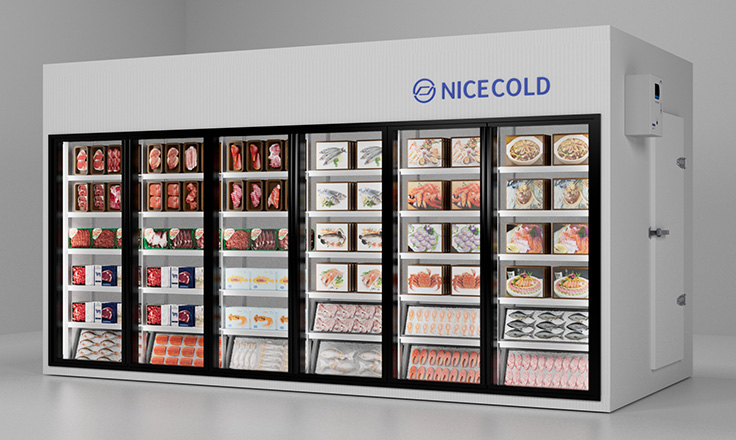

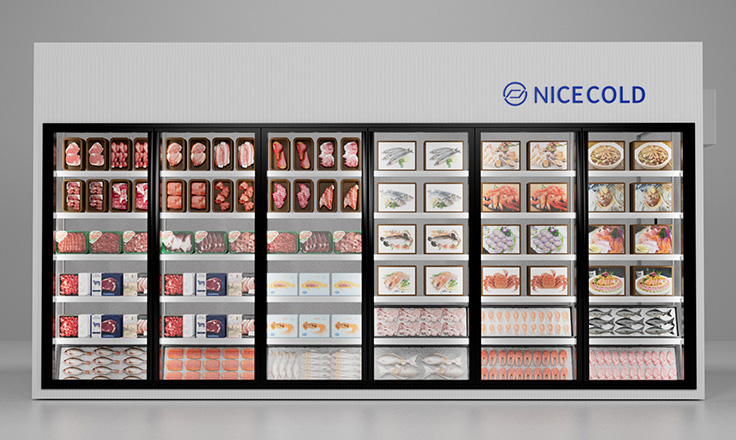

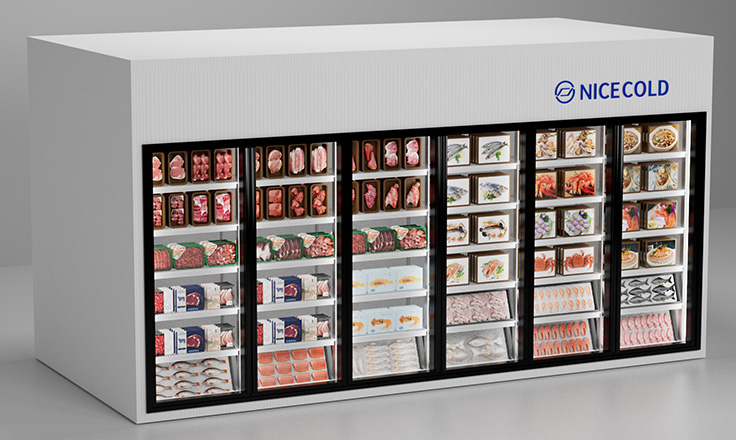

Display walk-in freezer with glass door is a new type of cold storage, integrating display and storage functions. If you have a display cold room, it is equivalent to having one normal display cabinet + one traditional cold storage.

NICECOLD walk-in display freezing room, temperature range from -18°C to -25℃ .This kind of cold storage is popular with convenience stores, supermarkets, restaurants, etc. Its application scope includes seafood, meat, frozen food and so on.

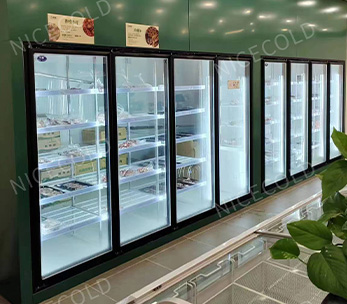

1) Display—The front area of the cold room is equipped with glass doors and shelves, which can visually display the goods for customers to purchase.

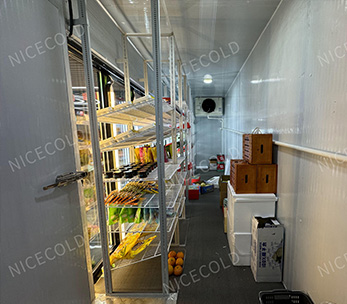

2) Storage—The rear area of the cold room can store goods, and users can enter from cold room door for replenishment, without affecting customer shopping.

3) Customized design—Different layout, different size, different quantity of glass doors . It can be customized according to actual needs. Irregular shapes are acceptable.

Product Parameter

Product name: glass door display walk-in cold room
Dimension: L*W*H(m) customized
Temperature: -18ºC~-25ºC
Voltage: 220V/380V/Customized
Warranty: 1 Year
Compressor brand: Panasonic/ Emerson/Copeland/Bitzer
Panel Thickness: 120/150mm polyurethane
Application: meat like beef, lamb, chicken, pork, etc.,seafood like fish, shrimps or prawns,etc., frozen food

Main Component

  • Glass door
  • Shelve
  • Polyurethane panel
  • Refrigeration equipment
  • * Three-pane glass (freezer)
  • * LOW-E electric heated tempered glass
  • * Self-closing function
  • * Full length handle
  • * Magnetic gasket
  • * Hinge system
  • * Left and right interchange function(optional)
  • * 90° Door stay open system
  • * Standard depth or customized;
  • * default load-bearing capacity 85kg, upper limit 100kg,
  • * Aluminum alloy material,
  • *different types available.
  • *fluoride-free material,
  • *environment-friendly,
  • *fireproof level B2,
  • *Panel thickness 100mm/120mm,
  • *Outer layer color steel plate thickness 0.426mm
  • *High density PU foam 38-42 kg/m³
  • *Cam lock type, easy to install.
  • A.Compressor unit
  • *Use world famous compressor like Japan Panasonic, German Bitzer, American Emerson, etc.
  • *Automatic high-precision digital controller, Easy to operate
  • B.Evaporator
  • *Reasonable structure, high heat exchange efficiency and electric saving.
  • *Use stainless steel tubular electric heat pipe with strong insulation, which has reasonable distribution and short defrost time.

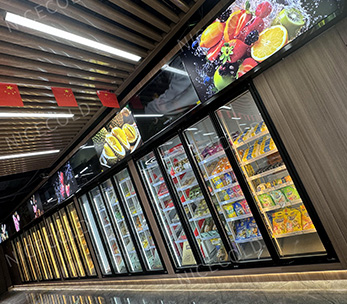

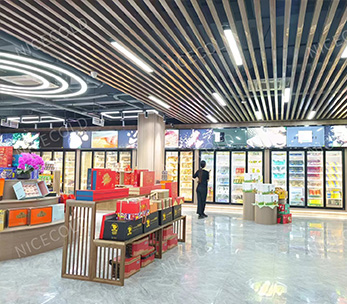

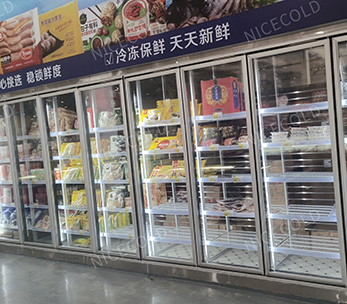

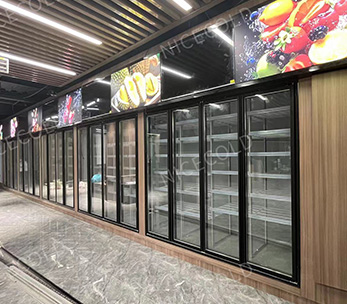

Project Case Display
