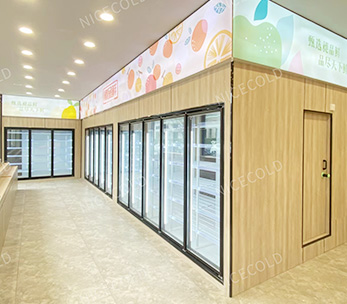

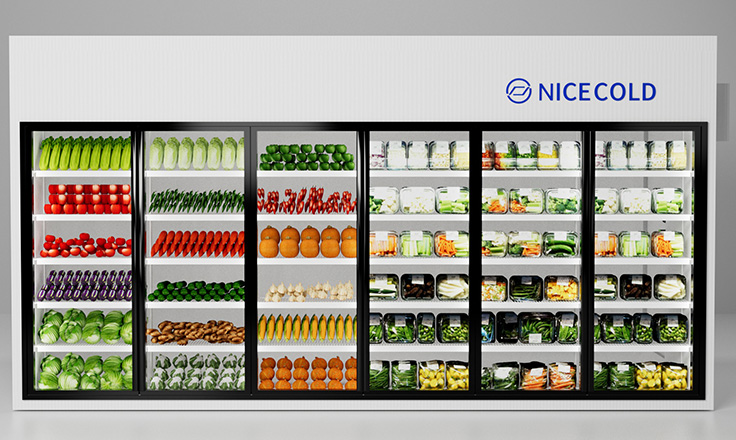

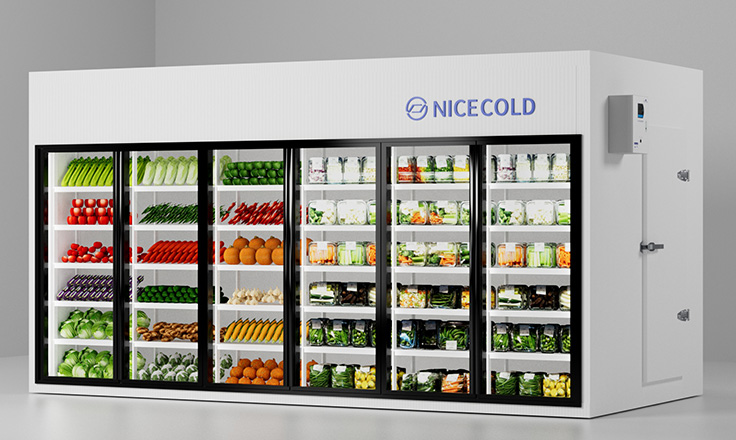

Display walk-in cooler for vegetables&fruits

Display walk-in cooler for vegetables&fruits
Display walk-in cooler for vegetables&fruits
Display walk-in cooler for vegetables&fruits

Product Introduction

Display walk-in cold room, as a new type of cold storage, has display glass doors and shelves in the front part, while has storage areas and entry door for replenishment in the rear part . This means that owners can store goods without bothering customers to buy products. Besides, the supplementary goods are placed in the cold room at the same temperature in advance, so the consistency of the temperature of the goods can be ensured.

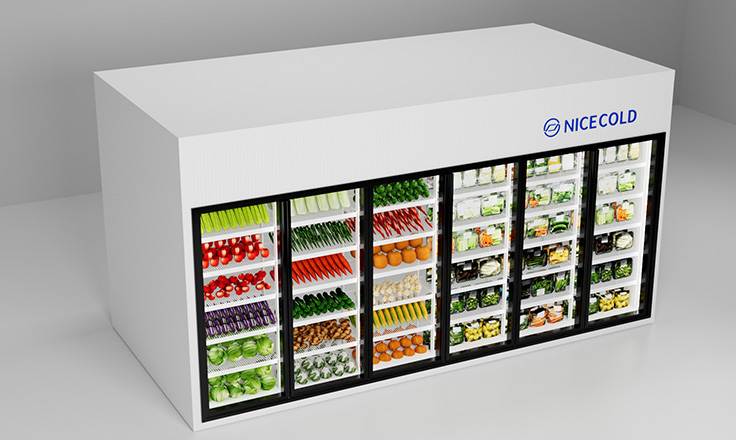

The size and layout of vegetables&fruits display cold room can be customized according to user’s actual existing situation. Irregular shapes are also acceptable, such as L shape, U shape, angled shape,etc.On the shelf selection and temperature control, it will be set according to the characteristics of fresh fruits and vegetables.

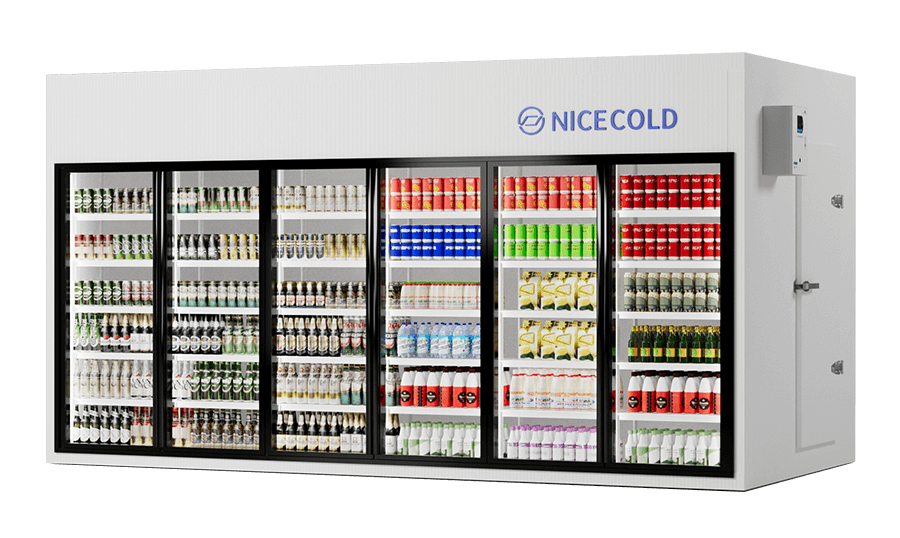

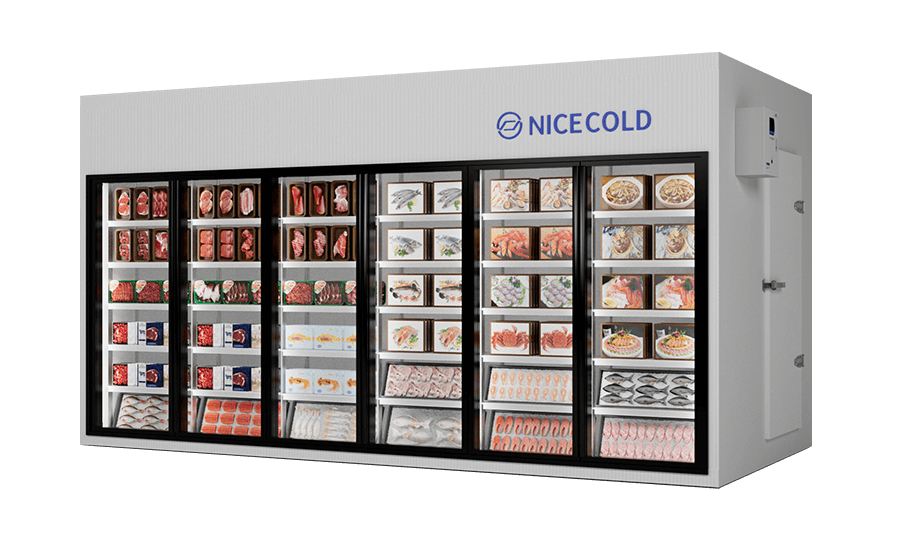

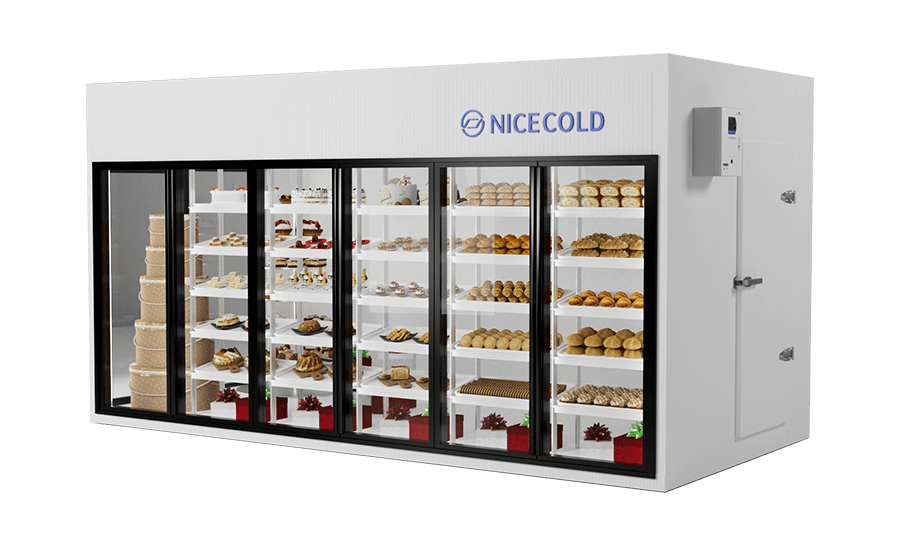

The glass door cold storage can be a freezer or cooler with both preservation and display functions, does not take up space and cost-effective, can be directly used for sales, suitable for convenience stores, fresh supermarkets and shopping malls. Application covers vegetable&fruits, beverages, dairy products, medicines, flowers, tea, meat. Etc..

Product Parameter

Product name: glass door display walk-in cold room
Dimension: L*W*H(m) customized
Temperature: 0°C~10°C
Voltage: 220V/380V/Customized
Warranty: 1 Year
Compressor brand: Panasonic/ Emerson/Copeland/Bitzer
Panel Thickness: 100mm polyurethane
Application: vegetables&Fruits, cold drinks, dairy products, beverages, flowers, tea, bread,etc.

Main Component

  • Glass door

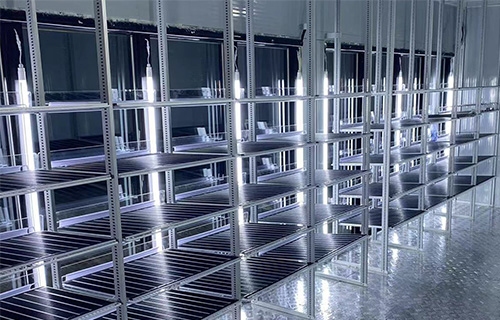

  • Shelve

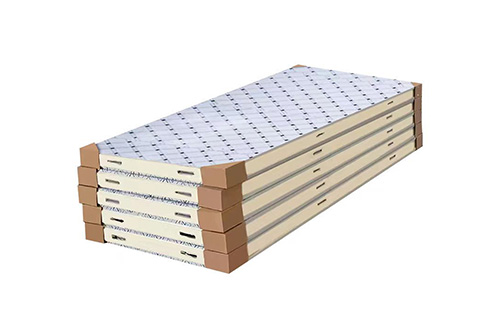

  • Polyurethane panel
  • Refrigeration equipment
  • * Two-pane glass (cooler)
  • * LOW-E electric heated tempered glass
  • * Self-closing function
  • * Full length handle
  • * Magnetic gasket
  • * Hinge system
  • * Left and right interchange function(optional)
  • * 90° Door stay open system
  • *Automatic rebound function
  • *LED light
  • * Standard depth or customized;
  • * default load-bearing capacity 85kg, upper limit 100kg,
  • * Aluminum alloy material,
  • *different types available.
  • *fluoride-free material,
  • *environment-friendly,
  • *fireproof level B2,
  • *Panel thickness 100mm/120mm,
  • *Outer layer color steel plate thickness 0.426mm
  • *High density PU foam 38-42 kg/m³
  • *Cam lock type, easy to install.

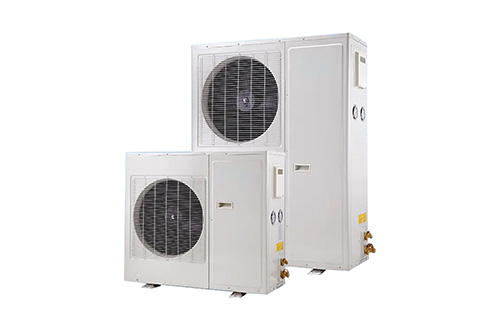

  • A.Compressor unit
  • *Use world famous compressor like Japan Panasonic, German Bitzer, American Emerson, etc.
  • *Automatic high-precision digital controller, Easy to operate
  • B.Evaporator
  • *Reasonable structure, high heat exchange efficiency and electric saving.
  • *Use stainless steel tubular electric heat pipe with strong insulation, which has reasonable distribution and short defrost time.

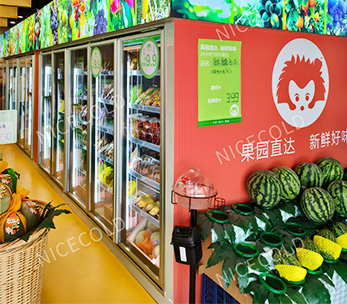

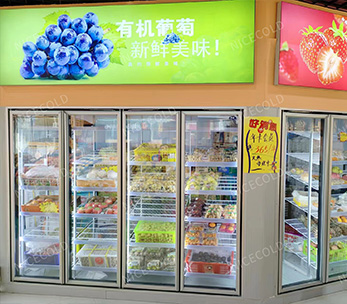

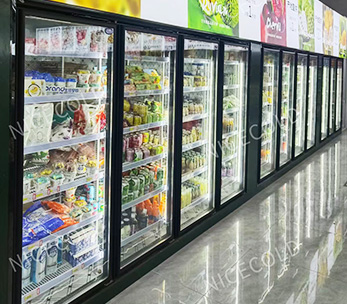

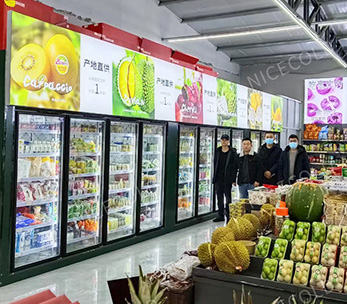

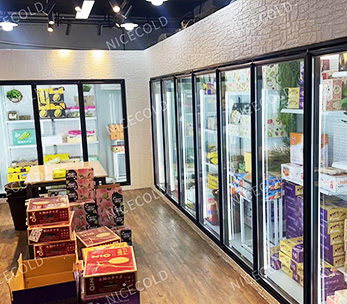

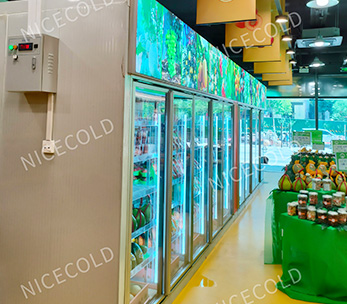

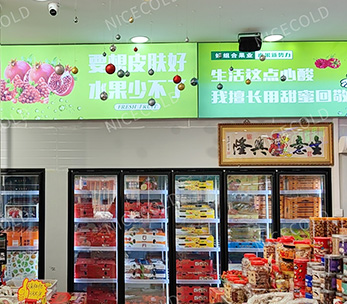

Project Case Display
